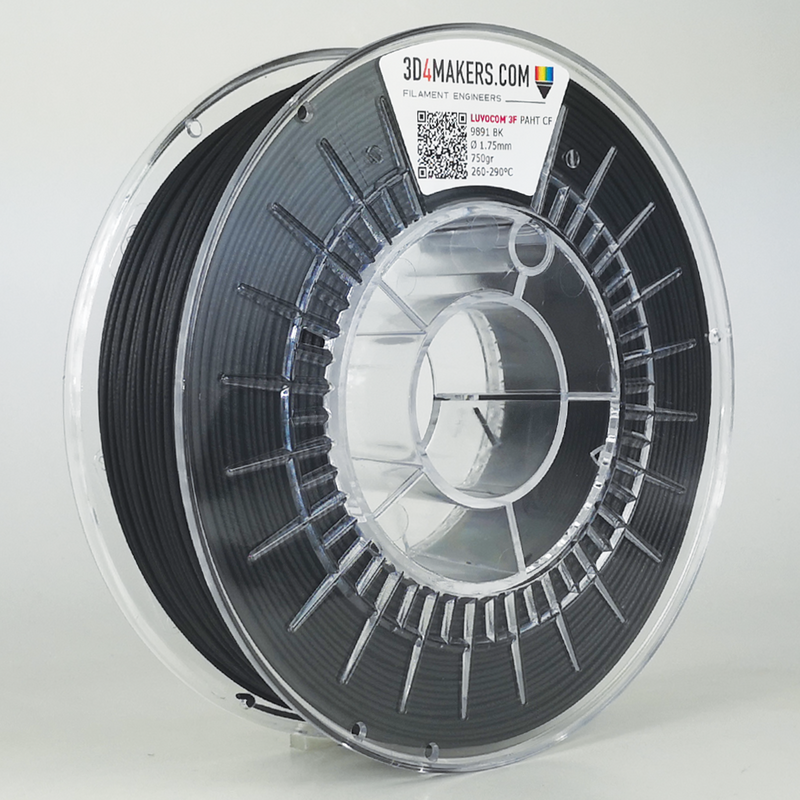

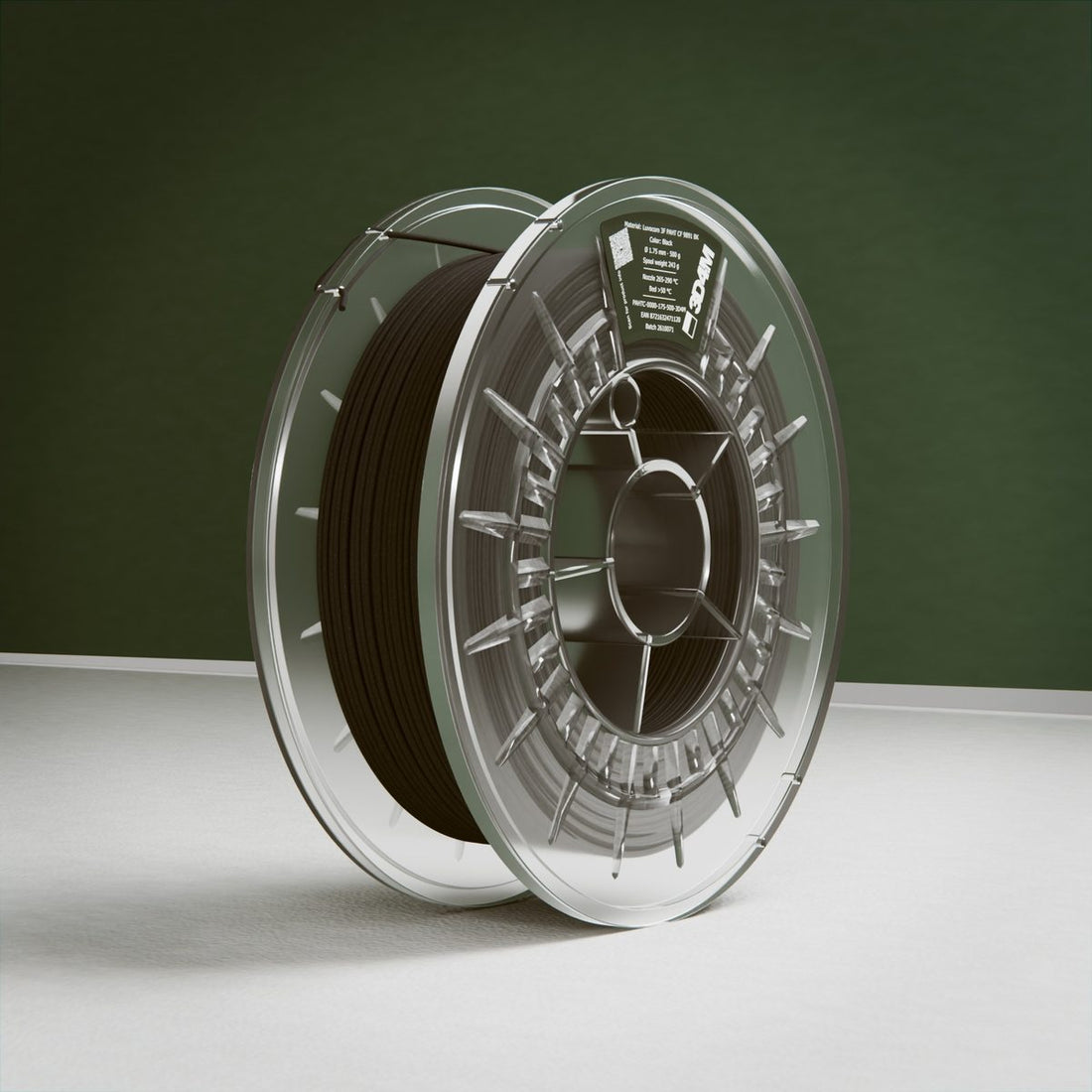

Luvocom® 3F PAHT CF 9891 BK Filament

3D4MakersSKU: PAHTC-0000-175-500-3D4M
No reviews

Color: BK
Diameter: 1.75mm
Weight: 500 gram
Price:
Sale price€59.95 EUR
Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders
Powered by Shopify Planet

Description

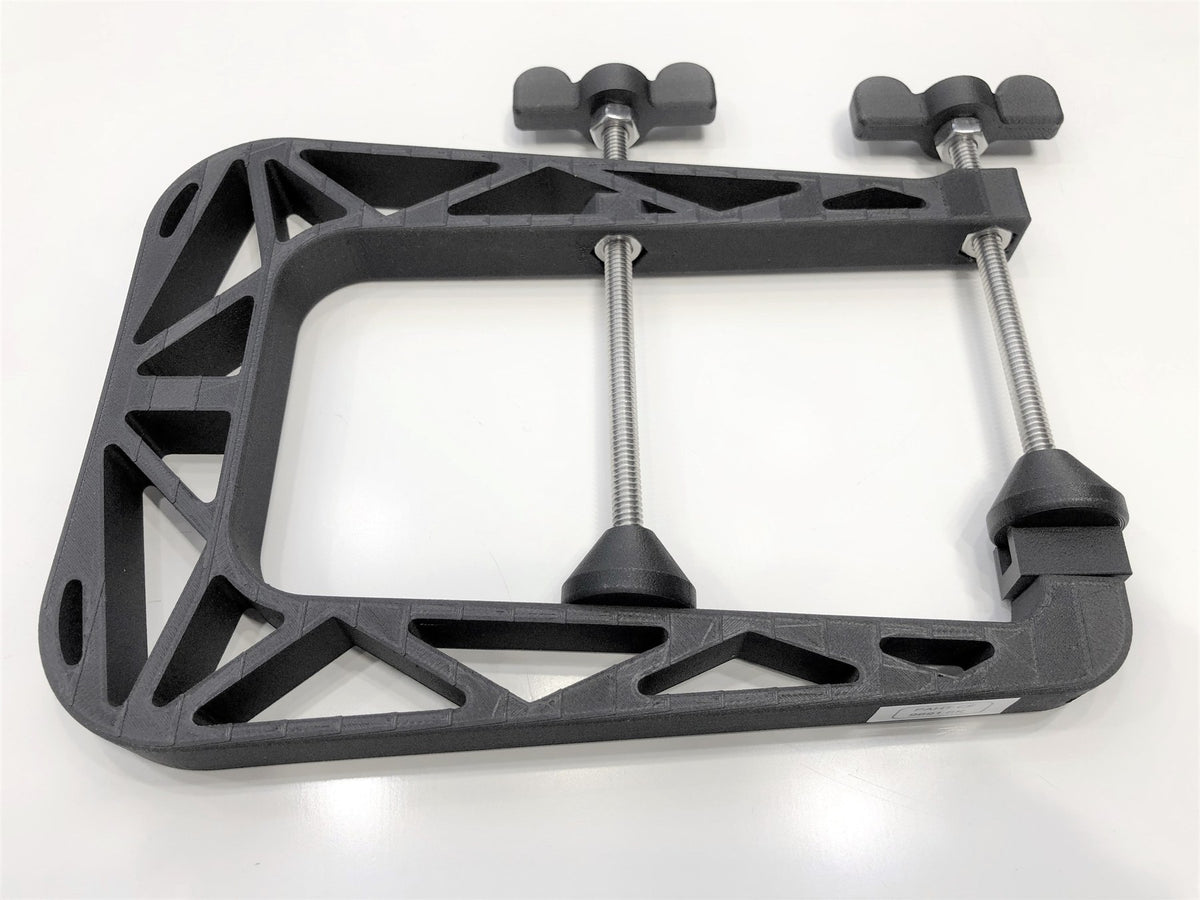

Luvocom® 3F PAHT CF 9891 BK Filament is a high temperature carbon fiber (15%) reinforced polyamide (PA). This grade is PA6 based and is easy to print with low warping and improved layer bonding is optimised for industrial applications. Typical industries where it is commonly used are in robotics, drones, automotive, aerospace and also widely in the field of functional prototypes and end parts. This particular engineering polymer grade is tailored made for the 3D printing industry to match the injection molding strength requirements and focusing on the serial production of end-parts, the filament can be used on conventional FFF / FDM 3D printing systems without an heated chamber. This 3D4Makers PAHT CF filament features the following properties:

  • Low influence from moisture and temperature to measures and electrical properties
  • Designed for industrial applications
  • Carbon Fiber Reinforced Material (15%)
  • PA6 based material



    Material properties



    Description Value Test method
    Density 1,24 g/cm³ ISO 1183-3
    Tensile  strength (at 23°C/50% rh) 130 MPa ISO 527
    Elongation at maximum force
    2 %
    ISO 527
    Modulus of Elasticity  (at 23°C/50% rh) 11,5 GPa ISO 527
    Charpy impact strength 35 kJ/m² ISO 179 1eU
    Heat Distortion Temp. 90 °C ISO 75
    Continuous service temperature (20.000 h) 120 °C EC 60216
    Service temperature (during lifetime max. 200h) 160  °C /
    Insulation resistance strip electrode (R25)
    ≤10² Ω DIN IEC 60167
    Surface resistance (ROB) <10² Ω DIN IEC 60093


    Printer recommendations

    Description Value
    Printer nozzle temperature 260 - 290°C
    Heated bed temperature 60 - 80°C
    Print Speed 40 - 60 mm/s
    Bed Adhesion Magigoo PA on glass or a PEI Sheet
    Pre drying recommendations - 100°C, 4 - 6 hours or 80°C, 12 hours
    - Profile also available for Drywise In-Line Dryer
    Extra We advise to use a adapted nozzle (>0.5mm) for carbon filled filaments


    *Printing profile available in Ultimaker Marketplace


    To get the best results while printing we advise you to keep the 3D printer in a room where there is hardly any draft and/or temperature fluctuations. When the 3D printer is not being used it is important to keep filament in a bag and stored in a cool, dry and dark place until it is used again.


    Documents

    PDF icon Printing Guideline (588 KB)
    PDF icon Technical Data Sheet (149 KB)
    Material Safety Data Sheet (224 KB)
