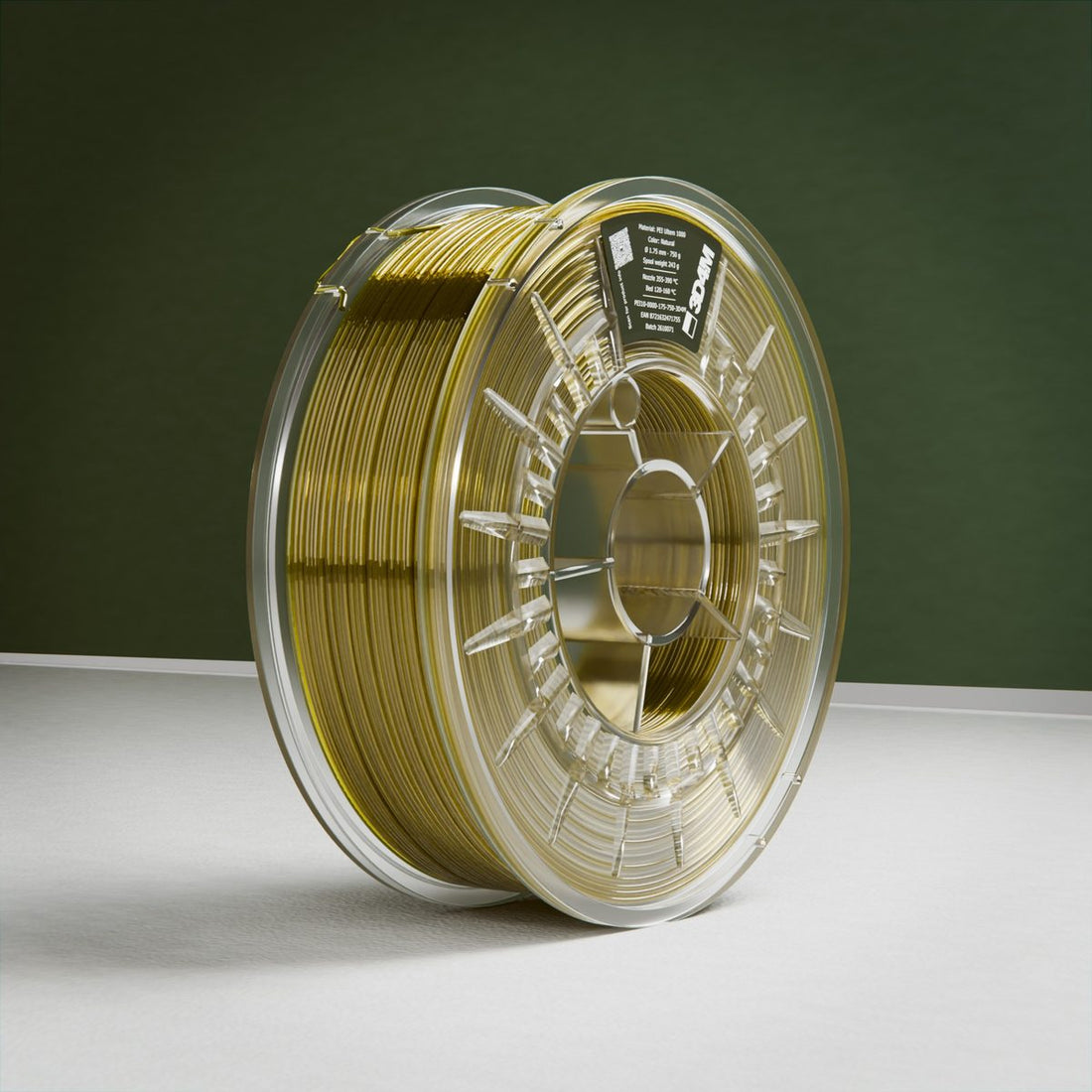

PEI Ultem 1000 Filament

3D4MakersSKU: PEI10-0000-175-750-3D4M
No reviews

Color: Natural
Diameter: 1.75mm
Weight: 750 gram
Price:
Sale price€195.87 EUR
Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders
Powered by Shopify Planet

Description

PEI Ultem 1000 (Polyether Imide) Ultem Filament


Technical information:

Polyether Imide (PEI) Ultem 1000 is an amorphous, amber to transparent thermoplastics with a glass transition temperature (Tg) of 217 °C and performs in continuous use up to 170 °C. This inherently flame retardant plastic has UL94 V0 and 5VA ratings. 3D4MAKERS has selected Ultem 1000 for their filament.

The 3D4MAKERS PEI Ultem 1000 Filament has unique properties because it does not come into contact with water during the production process and is directly packaged in a vacuum packaging. These properties make the 3D4MAKERS PEI Ultem 1000 Filament particularly suitable for usage in FDM and FFF 3D printers. The material has an excellent adhesion between layers which results in great improvement of the impact resistance, strength, durability and the printing process.

Measurements & Tolerance

Size Diameter tolerance  roundness

1,75 mm Filament

+/- 0,05mm

95%

2,85 mm Filament

+/- 0,10mm

95%



Physical properties

Description Value Test method
Density 1,27 g/cm3 ISO 1183
Tensile Modulus 3200 Mpa ISO 527
Tensile Stress 105 MPa ISO 527
Impact strength Notched Izod 5.0 Kj/m² ISO 180



Printer settings

Description Value
Printer nozzle temperature 355 - 390°C
Heated bed temperature 120 - 160°C
Adhesion Magigoo HT on glass or a PEI Sheet
Drying recommendations 120°C, minimal 4 hours

To get the best results while printing we advise you to keep the 3D printer in a room where there is hardly any draft and/or temperature fluctuations. Keep the 3D printer out of the sun. This cannot be a room where people sleep.

When the 3D printer is not being used it is important to keep the 3D4MAKERS PEI Ultem 1000 Filament in a bag and stored in a cool, dry and dark place until it is used again.



Safety information

REGULATION (EC) No. 1272/2008. According to EC regulations this product is not classified as dangerous for supply/use.

Classification according to EU-directive 67/548/EEC or 1999/45/EC. According to EC criteria this product is not classified as dangerous for supply/use.



COMPOSITION AND INFORMATION ON THE COMPONENTS





CAS-Nr./EG-Nr./Index

REACH Nummer

Bestanddeel

Classificatie        Verordening         (EG) Nr. 1272/2008

(EG) Nr. 67/548/EEC

CAS-Nr. 61128-46-9

EG-Nr. Polymeer

  ----------

Polyetherimide

Not classified



Exposure controls / Personal protection

Local Exhaust Ventilation at the workplace or on the 3D printer is required.

Legally Obliged Information

1 Specific safety, health and environmental regulations and legislation for the substance or mixture.

Classification of the substance or mixture

The substance is not classified as dangerous according to Regulation (EC) no 1272/2008 (CLP/GHS) and Directive 67/548/EEC.

2 Chemical safety assessment: Does not apply

RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization and Restriction of Chemicals).

Recommended restrictions

Do not use in medical applications involving permanent implantation in the human body.

The PEI Ultem 1000 Filament produced by 3D4MAKERS meets the European RoHS and REACH guidelines.

Environmental information

Plastic waste can damage the environment. 3D misprints must be separated with plastic waste together with the Filament reel. 3D4MAKERS is developing a return system for  3D misprints and the Filament reel.

Together we can protect the environment!
