Facilan™ PCL 100 Filament

Facilan™SKU: FPCL1-0000-175-750-3D4M

Color: Natural
Diameter: 1.75mm
Weight: 750 gram
Price:
Sale price€105

Description

 Facilan™  PCL 100 Polycaprolactone 750 gram

  •  Facilan™ PCL 100 it is perfect for high-value applications such as medical research.
  • Our customers use our PCL for research into artificial trachea, smart materials, scaffolds for tissue engineering, bioabsorbable implants, drug-loaded implants and other cutting-edge applications.
  •  Facilan™ PCL 100 is used by many leading universities and research centers worldwide for bleeding edge work in bioprinting and patient specific medical research.
  •  Facilan™ PCL 100 is very flexible and tough with a glass transition temperature of -60 °C and a print temperature of around 120°C.
  • Facilan™ PCL100 is polycaprolactone homopolymer with a molecular weight of 50000 g/mol.
  • Facilan™ PCL100 is a semi-crystalline aliphatic biodegradable polyester with white final appearance.
  • Filament produced by 3D4Makers is based on raw material produced in compliance with the European regulations EC No. 1935/2004 and EC No. 10/2011 concerning plastic materials and articles coming into contact with food.
  • The material has an amazing adhesion between layers which results in great improvement of the impact resistance, strength, durability, and printability.
  • Due to the low melting point, of Facilan™ PCL100 it can be reshaped after 3D printing in water with a temperature of 55 °C.

      Recommended restrictions
      Do not use in medical applications involving permanent implantation in the human body.

      3D4Makers Polycaprolactone Facilan™ PCL 100 is one of the most extensively used bioprinting and medical 3D printing research materials worldwide.

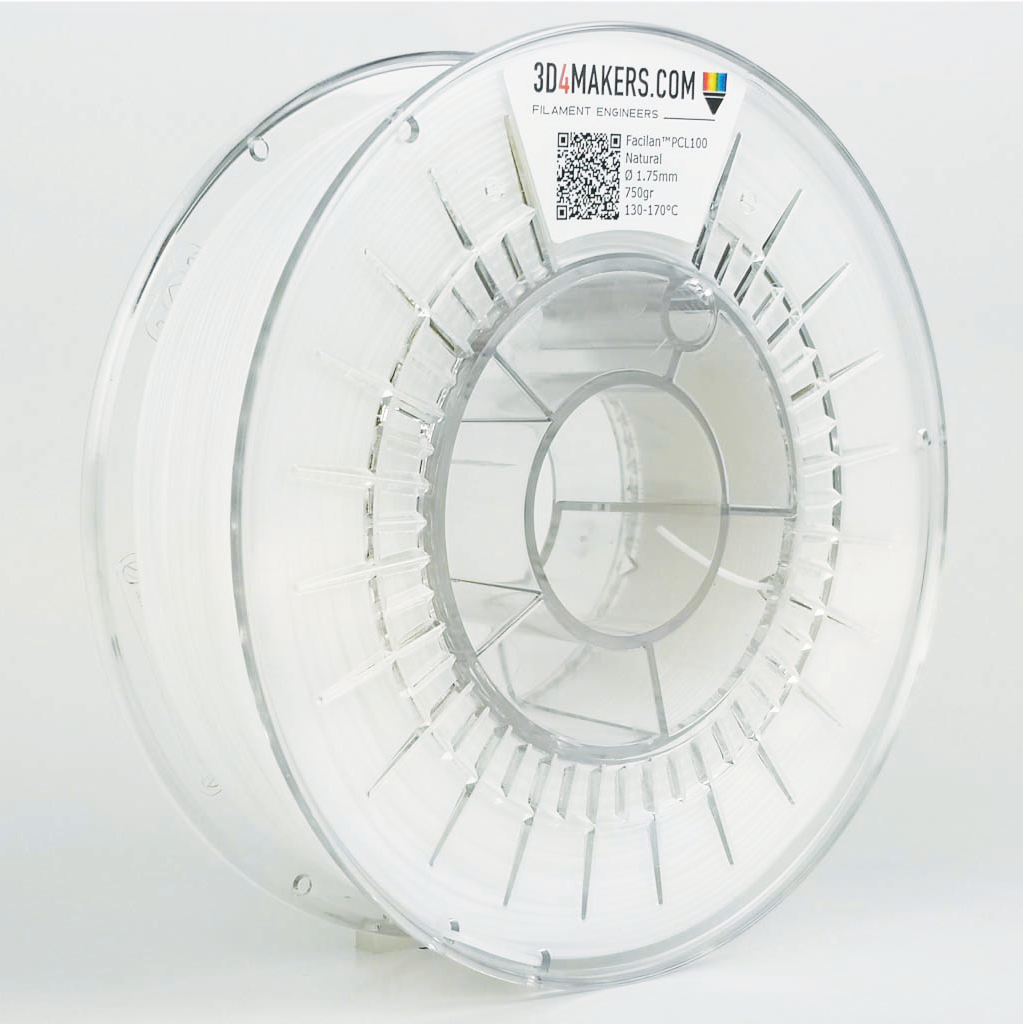

      Sold on a 750-gram spool in both 1.75mm and 2.85mm diameter.

       Facilan™ PCL100 Material Properties
      • Density: 1.1 g/cm³
      • Tensile Strength: 45 MPa
      • Elongation at Yield: 15 %
      • Tensile Modulus: 350 MPa
      • IZOD Impact Strength (notched): 8 kJ/m2
      • Shore D Hardness: 46
      • Heat Deflection Temperature (0,45 MPa): 57 °C

      Print Settings

      • Print Temperature: 130°C (130 to 170°C)
      • Bed Temperature: 30-45°C
      • Adhesion: Ultimaker Adhesion sheets, Avery Mailing labels L7567-25, PEI Sheets
      • Print Speed: 10mm/s  (10 - 30 mm/s)
      • Fan Speed: 100%
      • Note: Add M302 S120 into the beginning of the g-code to allow cold extrusion, below 170°C
      • Extra: Minimum Layer Time considerably +/- 60 sec minimum, highly dependent of model size and complexity and enabled Lift Head.

      TDS

      You can download the Technical Data Sheet for Facilan™ PCL 100 here.

      MSDS

      You can download the Material Safety Data Sheets for Facilan™ PCL100 here:

      English

      Spanish

      French

      Italian

      German

      Dutch



      *The previous name of this product was PCL100
