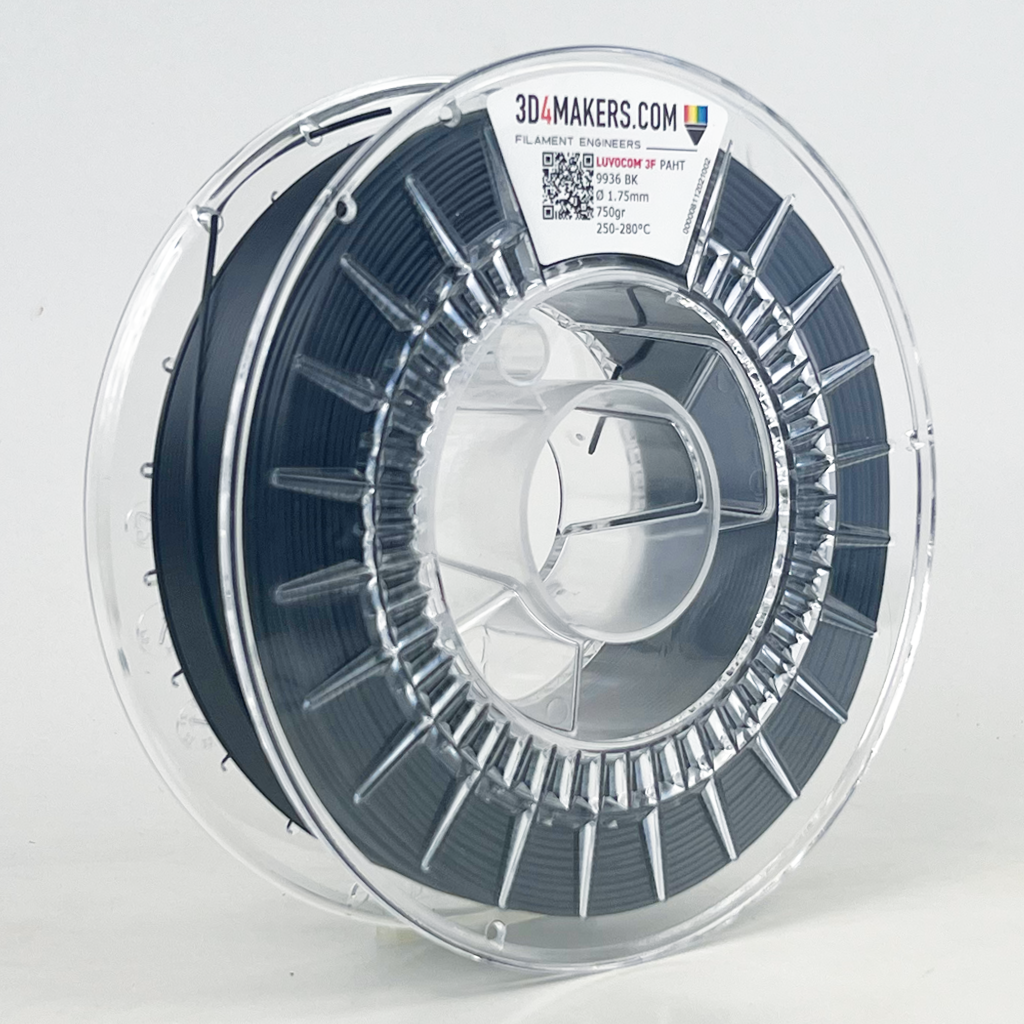

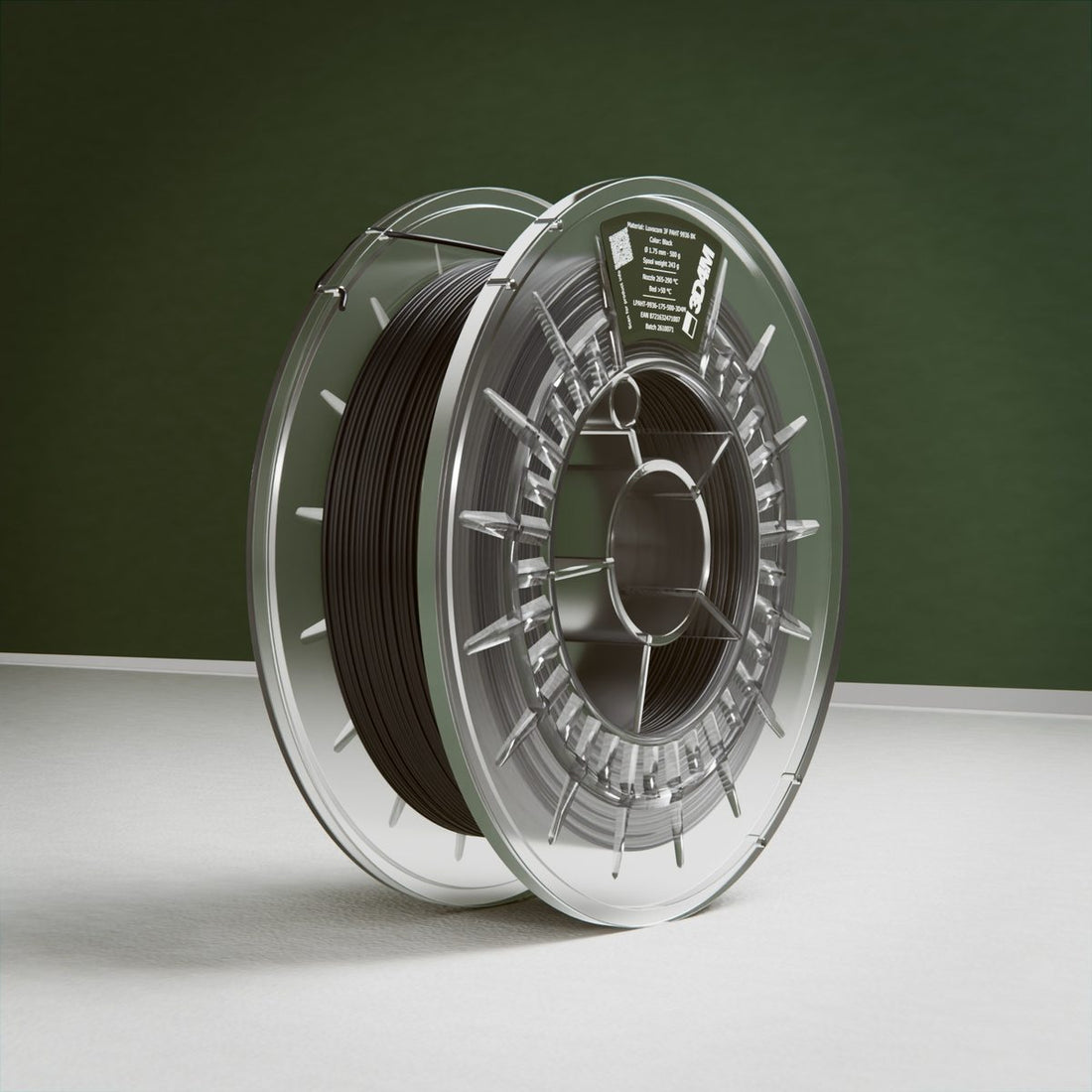

Luvocom® 3F PAHT 9936 BK Filament

3D4MakersSKU: LPAHT-9936-175-750-3D4M
No reviews

Color: BK
Diameter: 1.75mm
Weight: 750 gram
Price:
Sale price$84.00 USD
Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders
Powered by Shopify Planet

Description

LUVOCOM 3F PAHT® 9936 BK filament is a high-temperature PA6-based 3D printing material in striking black color. This PA6 stands out with its remarkable mechanical strength, surpassing conventional filaments. Its outstanding thermal properties, exceptional chemical resistance to oils and lubricants, and elevated resistance to abrasion makes it stand tall amongst unmodified PA6 or PA66 materials. Moreover, it boasts excellent electrical insulation properties, further enhancing it for various industrial 3d printing applications.

Whether for long-term operation at elevated temperatures of up to 120°C (20,000h) or short-time bursts at 160°C (max. 200h), this material maintains its mechanical integrity. Enjoy seamless printing with minimal linear processing shrinkage (0.3%) and reduced water absorption (<0.3%, 23°C / 24h). LUVOCOM 3F PAHT® 9936 BK unlocks a new level of precision and reliability for professional users, ensuring flawless prints with high mechanical strength and excellent electrical insulation properties.



  • Easy to print on all known filament printers
  • Optimized surface appearance
  • Low warping and increased layer adhesion
  • High mechanical strength and toughness



    Material properties

    Description Value Test method
    Density 1,25 g/cm³ ISO 1183-3
    Tensile  strength (at 23°C/50% rh) 78 MPa ISO 527
    Elongation at maximum force
    4,4 %
    ISO 527
    Modulus of Elasticity  (at 23°C/50% rh) 3,4 GPa ISO 527
    Charpy impact strength 90 kJ/m² ISO 179 1eU
    Heat Distortion Temp. 90 °C ISO 75
    Continuous service temperature (20.000 h) 120 °C EC 60216
    Service temperature (during lifetime max. 200h) 160  °C /
    Insulation resistance strip electrode (R25)
    >10¹² Ω DIN IEC 60167
    Surface resistance (ROB) >10¹² Ω DIN IEC 60093


    Printer recommendations

    Description Value
    Printer nozzle temperature 250 - 280°C
    Heated bed temperature 70 - 80°C
    Print Speed 40 - 60 mm/s
    Bed Adhesion Magigoo PA on CF plate, glass or a PEI Sheet
    Pre drying recommendations 100°C, 4 - 6 hours or 80°C, 12 hours



    *Printing profile available in Ultimaker Marketplace


    To get the best results while printing we advise you to keep the 3D printer in a room where there is hardly any draft and/or temperature fluctuations. When the 3D printer is not being used it is important to keep filament in a bag and stored in a cool, dry and dark place until it is used again.



    Documents

    PDF icon Printing Guideline (713 KB)
    PDF icon Technical Data Sheet (149 KB)
    Material Safety Data Sheet (224 KB)
