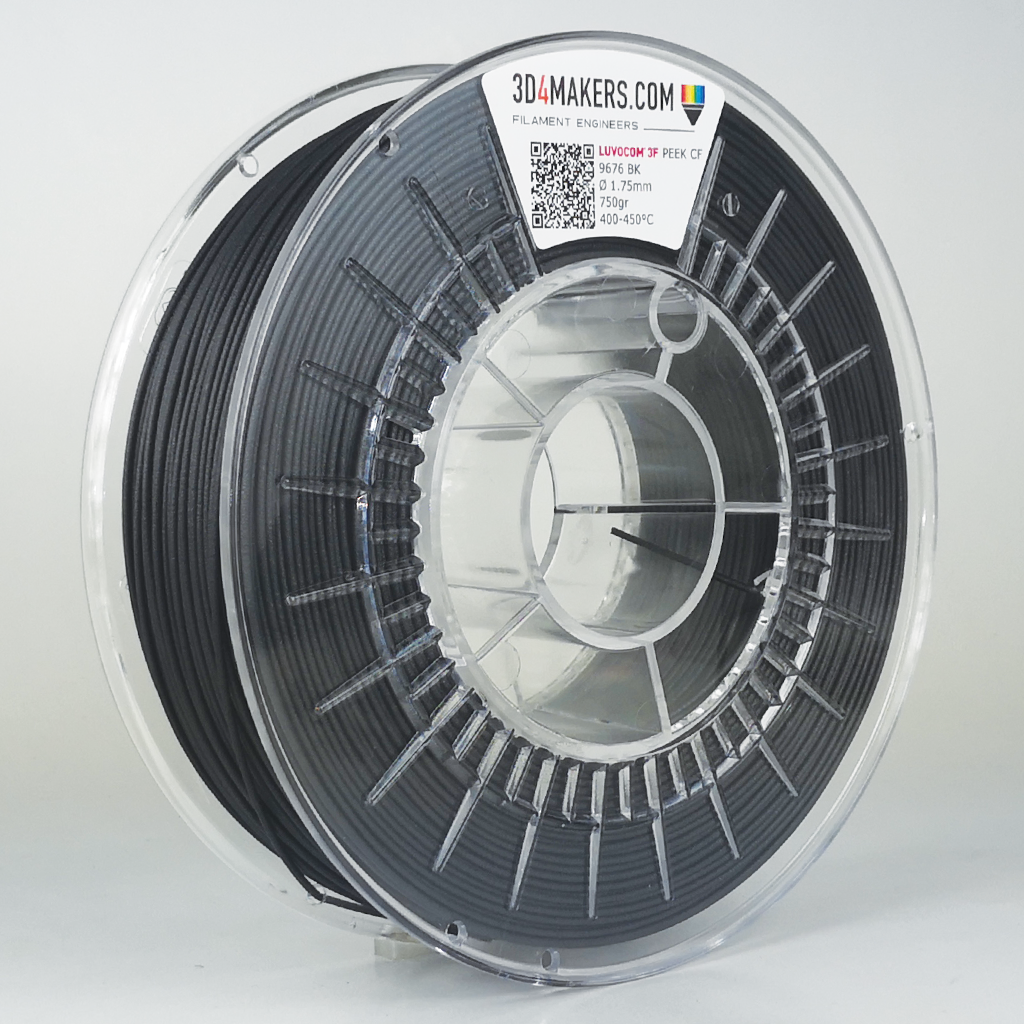

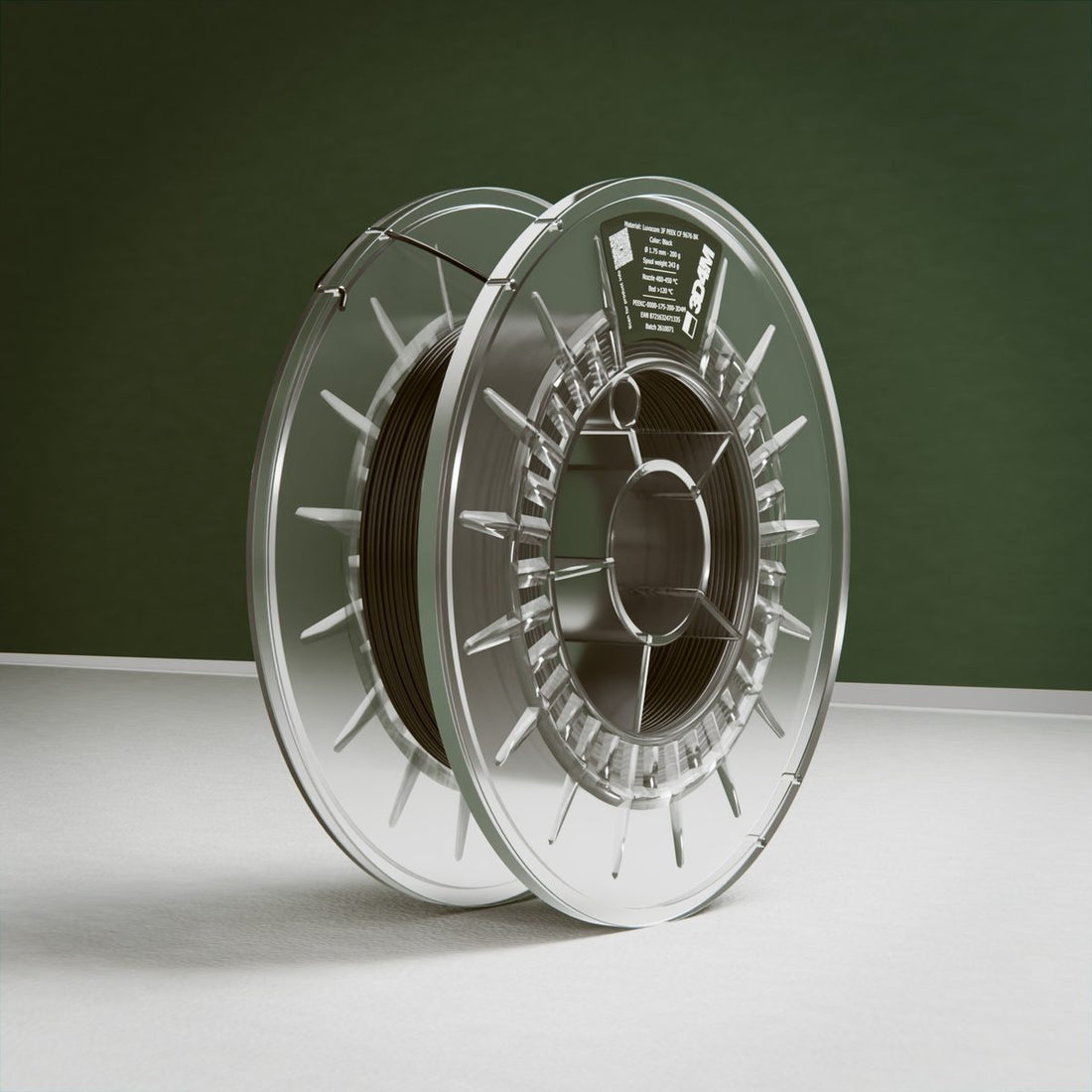

Luvocom® 3F PEEK CF 9676 BK Filament

3D4MakersSKU: PEEKC-0000-175-500-3D4M
No reviews

Color: BK
Diameter: 1.75mm
Weight: 500 gram
Price:
Sale price€358.80 EUR
Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders
Powered by Shopify Planet

Description

Luvocom® 3F PEEK CF 9676 BK Filament is a 15% carbon reinforced PEEK (Polyether Ether Ketone) with extraordinary characteristics in terms of mechanical, thermal and chemical resistance. PEEK with carbon is used in demanding industries like oil and gas, automotive, mechanical engineering, aircraft and aerospace technologies. This particular high performance polymer grade is tailored made for the 3D printing industry to match the injection molding strength requirements and focusing on the serial production of end-parts. This 3D4Makers PEEK CF filament features the following properties:

  • Excellent mechanical, thermal and chemical performance
  • Suitable for demanding industrial applications
  • Inherent flame retardant
  • High dimensional stability



Material properties

Description Value Test method
Density 1,36 g/cm3 ISO 1183
Tensile  strength (at 23°C/50% rh) 126 MPa ISO 527
Elongation (at 23°C/50% rh)
3,9 %
ISO 527
Modulus of Elasticity   (at 23°C/50% rh) 7,8 GPa ISO 527
Charpy Impact Strength
66 kJ/m² eU
Charpy Impact Strength notched kJ/m²
Heat Distortion Temp (HDT A)
280   °C ISO 75
Continuous Service Temp.
250   °C
UL 746B
Maximum (short term) Use Temp. 280  °C /
Insulation Resistance (Strip electrode R25) <10⁹ Ω DIN/IEC 60167
Surface Resistance <10⁹ Ω DIN IEC 60093



Printer recommendations

Description Value
Printer nozzle temperature 400 - 450°C
Heated bed temperature 110°C +
Print Speed 15 - 30 mm/s
Bed Adhesion Magigoo HT on glass or a PEI Sheet
Pre drying recommendations 120°C, 4 - 8 hours


To get the best results while printing we advise you to keep the 3D printer in a room where there is hardly any draft and/or temperature fluctuations. When the 3D printer is not being used it is important to keep filament in a bag and stored in a cool, dry and dark place until it is used again.



Documents

PDF icon Technical Data Sheet (149 KB)
Material Safety Data Sheet (250 KB)
