PEEK Filament.
Print structural parts that withstand aggressive chemicals and retain high mechanical strength under load. Food contact approved by the FDA and EU, this material stays rigid at temperatures where standard plastics fail. read further
- Food contact approved
- High mechanical resistance
- High chemical resistance
For custom specs, technical validation, or bulk pricing. Speak with an engineer before you order.
Freshly produced on demand and typically shipped within 3 working days.
PEEK: The gold standard for your most critical parts.

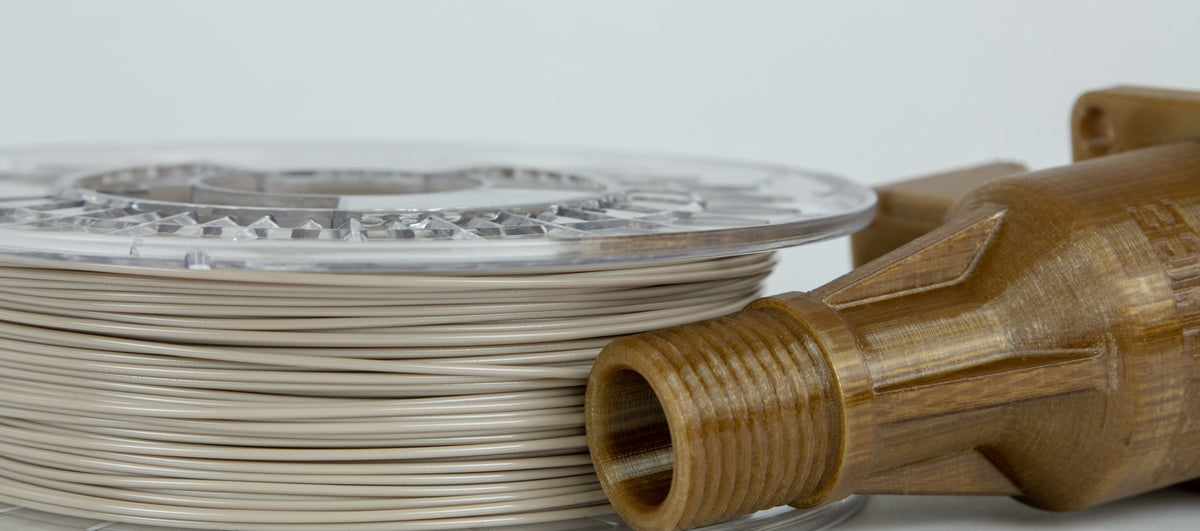

A threaded part printed in PEEK, next to the spool it came from. The layer definition and thread detail this filament holds.
| Property | Condition | Value | Test method |
|---|---|---|---|
| Density | Crystalline | 1.30 g/cm3 | ISO 1183 |
| Shore D Hardness | 23 °C | 85 | ISO 868 |
| Water Absorption by Immersion | Saturation, 23 °C | 0.45 % | ISO 62-1 |
| Property | Condition | Value | Test method |
|---|---|---|---|
| Tensile Strength | Yield, 23 °C | 105 MPa | ISO 527 |
| Tensile Elongation | Break, 23 °C | 30 % | ISO 527 |
| Tensile Modulus | 23 °C | 4.1 GPa | ISO 527 |
| Flexural Strength | At 3,5% strain, 23 °C | 130 MPa | ISO 178 |
| Flexural Modulus | 23 °C | 3.9 GPa | ISO 178 |
| Compressive Strength | 23 °C | 130 MPa | ISO 604 |
| Charpy Impact Strength | Notched, 23 °C | 4.2 kJ/m2 | ISO 179/1eA |
| Izod Impact Strength | Notched, 23 °C | 5.0 kJ/m2 | ISO 180/A |
| Property | Condition | Value | Test method |
|---|---|---|---|
| Melting Point | 343 °C | ISO 11357 | |
| Glass Transition (Tg) | Onset | 143 °C | ISO 11357 |
| Coefficient of Thermal Expansion | Along flow, below Tg | 50 ppm/K | ISO 11359 |
| Heat deflection Temperature | As moulded, 1,8 MPa | 156 °C | ISO 75A-f |
| Thermal Conductivity | Along flow, 23 °C | 0.32 W/mK | ISO 22007-4 |
| Relative Thermal Index | Electrical | 260 °C | UL 746B |
| Property | Condition | Value | Test method |
|---|---|---|---|
| Melt Viscosity | 400 °C | 130 Pa.s | ISO 11443 |
Tuned for precision in high-temperature systems.
| Parameter | Value |
|---|---|
| Nozzle temperature | 360 to 400 °C |
| Heated bed temperature | 120 °C |
| Drying recommendations | 120 °C, 2 to 4 hours |
| Print speed | 15 to 30 mm/s |
| Adhesion | Magigoo HT on glass, or a PEI sheet |
| Chamber temperature | around 100 °C |
| Filament weight | Spool | Empty weight |
|---|---|---|
| 200 to 750 g | RS 200 GH2L PC | 243 g |
| 1000 g | RS 200 KDL PC | 256 g |
Precision-engineered consistency.
Consistent prints start with a uniform filament shape. We continuously monitor diameter and roundness during production. When filament varies in size or loses its round profile, material flow becomes erratic. This causes under-extrusion and weak layer bonds.
Our manufacturing process keeps the cross-section stable across the full spool. Your printer receives a steady volume of material without pressure drops in the nozzle. You get predictable extrusion on every job, so with PEEK you can focus on your design, not your material.
Sealed at the source. Never touched by water.*
Unlike manufacturers who cool filament in a water bath, our filament never touches water during production. Moisture inside the material creates bubbles and weakens layer bonding during printing. Water-free production keeps extrusion consistent and bubble-free.
Sealed and ready to print.
We produce on demand. Every spool is vacuum-sealed immediately after extrusion, so it reaches you dry. This process keeps every spool of PEEK ready to print out of the box.
* At times of high demand, and for some variants, production may run on a conventional water-cooled line. Contact us before ordering if you require material produced with our water-free process.
Vacuum-sealed on the production line, before it ever leaves the machine.
Precision you can track. From pellet to part.
We produce every spool on demand in our own facility. This gives us direct oversight that mass-produced stock lacks. Your spool comes from a fresh, identifiable batch rather than long-term warehouse inventory. We document the production trail for every run.
Documented, not just shipped.
We keep the production logs for every batch we make. On request, we link a Certificate of Analysis and Technical Data Sheet to your specific batch. You get clear data for your spool of PEEK.
Dutch engineering for parts that define the future.
At 3D4M, we develop and manufacture high-performance thermoplastic filaments for demanding applications across aerospace, defence, semiconductor, automotive, medical research, and industrial manufacturing. We work with engineers, researchers, and manufacturers who need materials that go beyond standard specifications.
Our engineering starts with the machines themselves. We design and build our own extrusion lines around our patented extrusion process, combining material expertise with technology developed in-house. For moisture-sensitive polymers, our air-cooling technology offers a water-free cooling option, allowing us to tailor the production process to the material.
Our production facility is built on a single, uncompromising principle: control. From our extrusion technology to precise diameter monitoring and vacuum-sealed packaging, we control every stage to deliver consistent filament with batch traceability.
Trusted by global leaders
Supporting over 100 universities alongside global industry leaders, we have become a trusted partner to advanced research labs and manufacturers worldwide. We bring together material expertise and Dutch engineering to help turn ambitious ideas into reliable, high-performance parts.
3D4M headquarters, Haarlem, the Netherlands.
Validating this material for your application?
The leap to a high-performance polymer can be complex. Speak directly with one of our material engineers about your printer setup, target specifications, and material performance. We are here to help you de-risk your validation phase.
Specify your specs. We'll start your batch.
Experience the benefits of freshly extruded, water-free filament. Select your required diameter and spool weight in the order panel to initiate our on-demand production process. We ship worldwide, vacuum-sealed and ready.
Place your order
